We could offer the customization according to your demands or design paper.
Origin: XiangRui-Prosper, China
Main Pole Material: Q235A, Q235B, Q345B, A36, Q460, SS400
Height Specification: 3m, 4m, 5m, 6m, 7m, 8m, 9m, 10m, 12m
Pole Wall Thickness: 1.8mm ~ 8mm (Different height match different thickness)

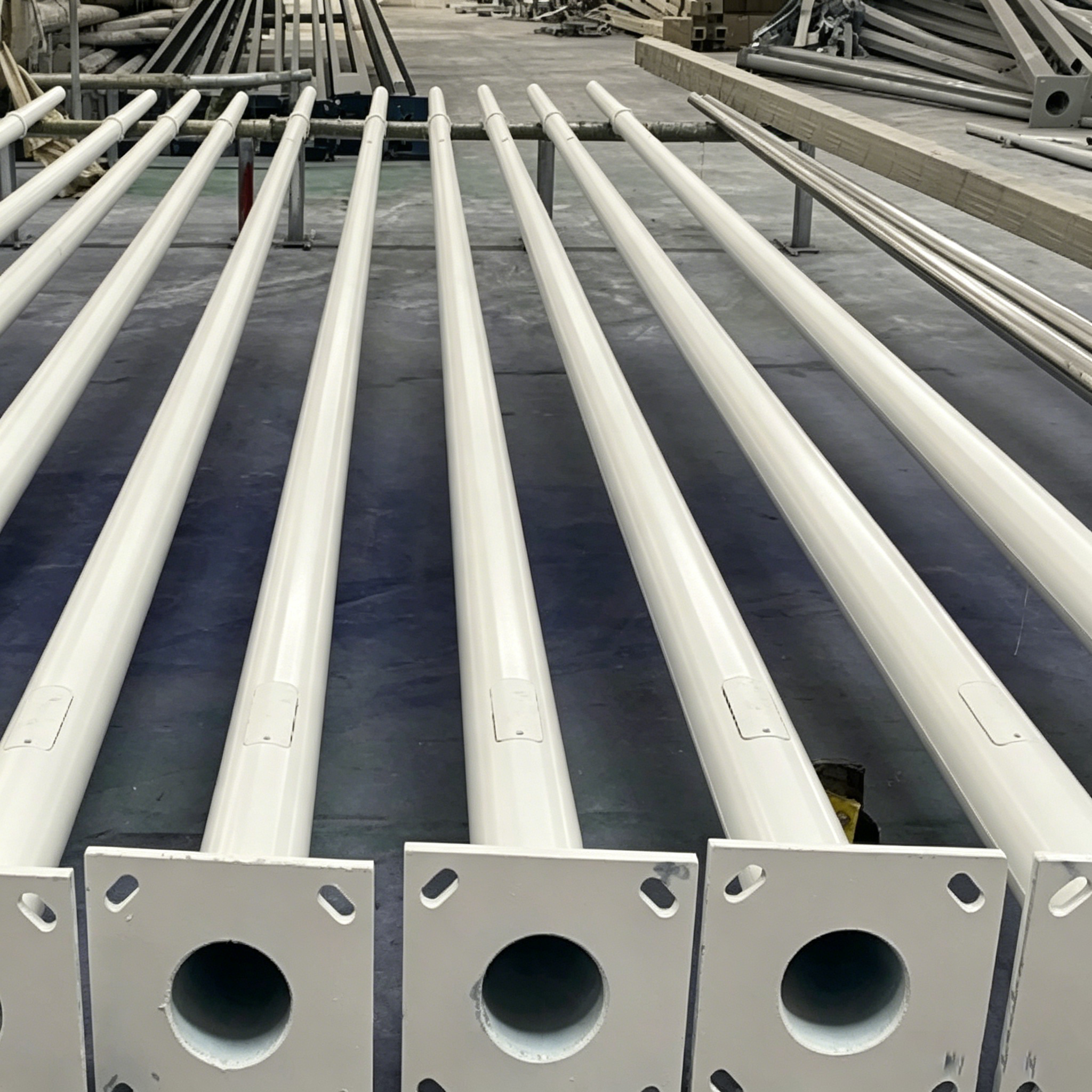

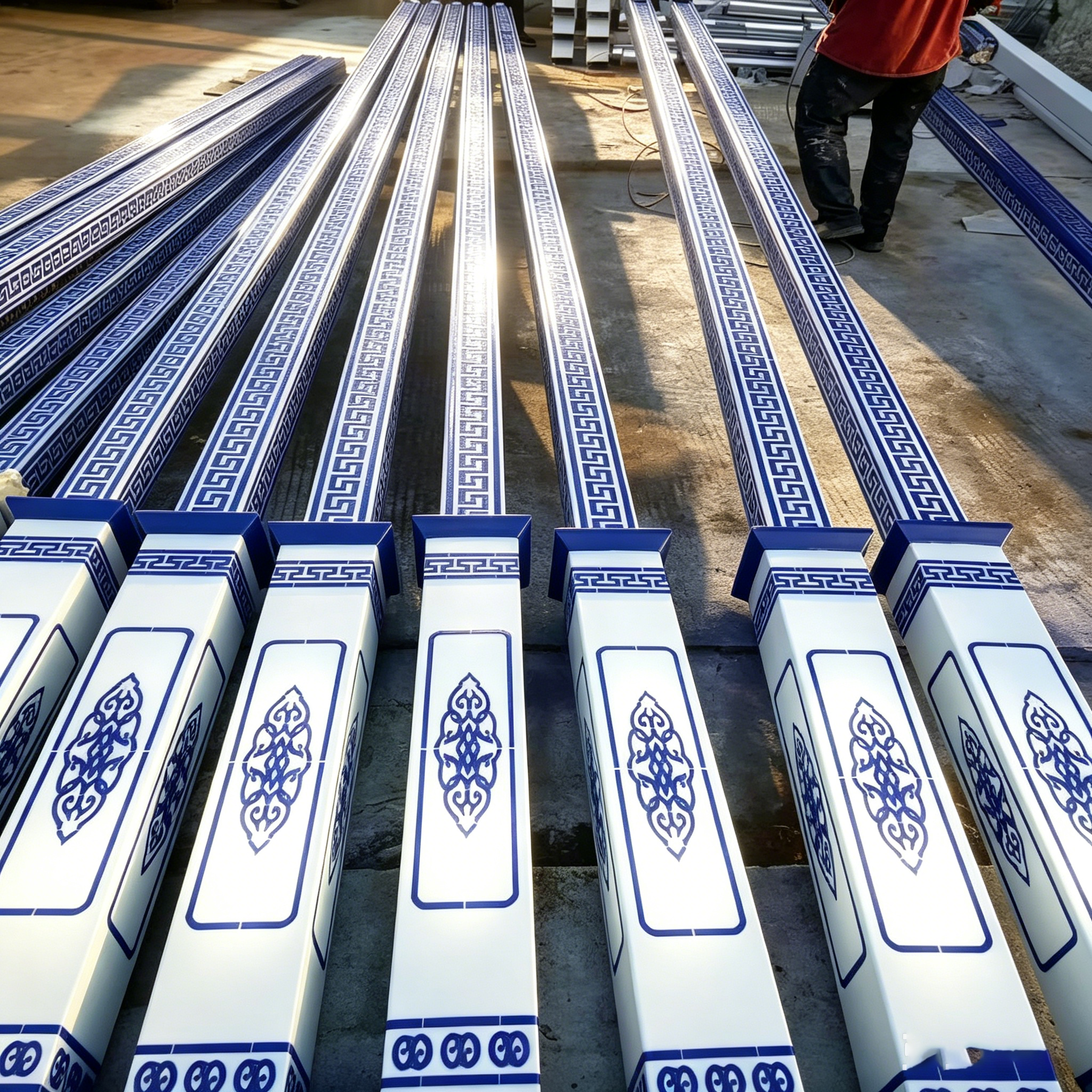

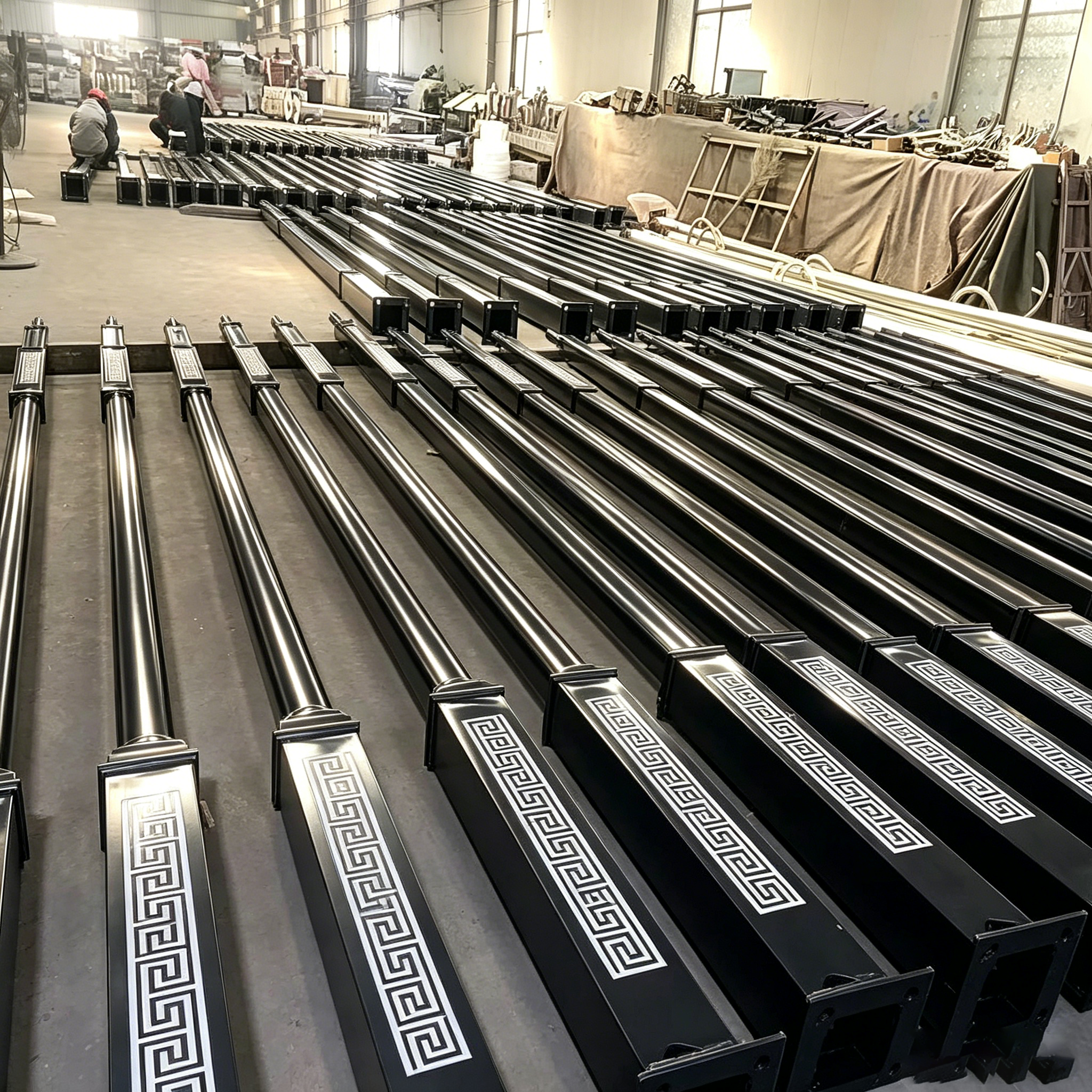

Pole Shape: Tapered round pole, octagonal pole, square equal-diameter pole

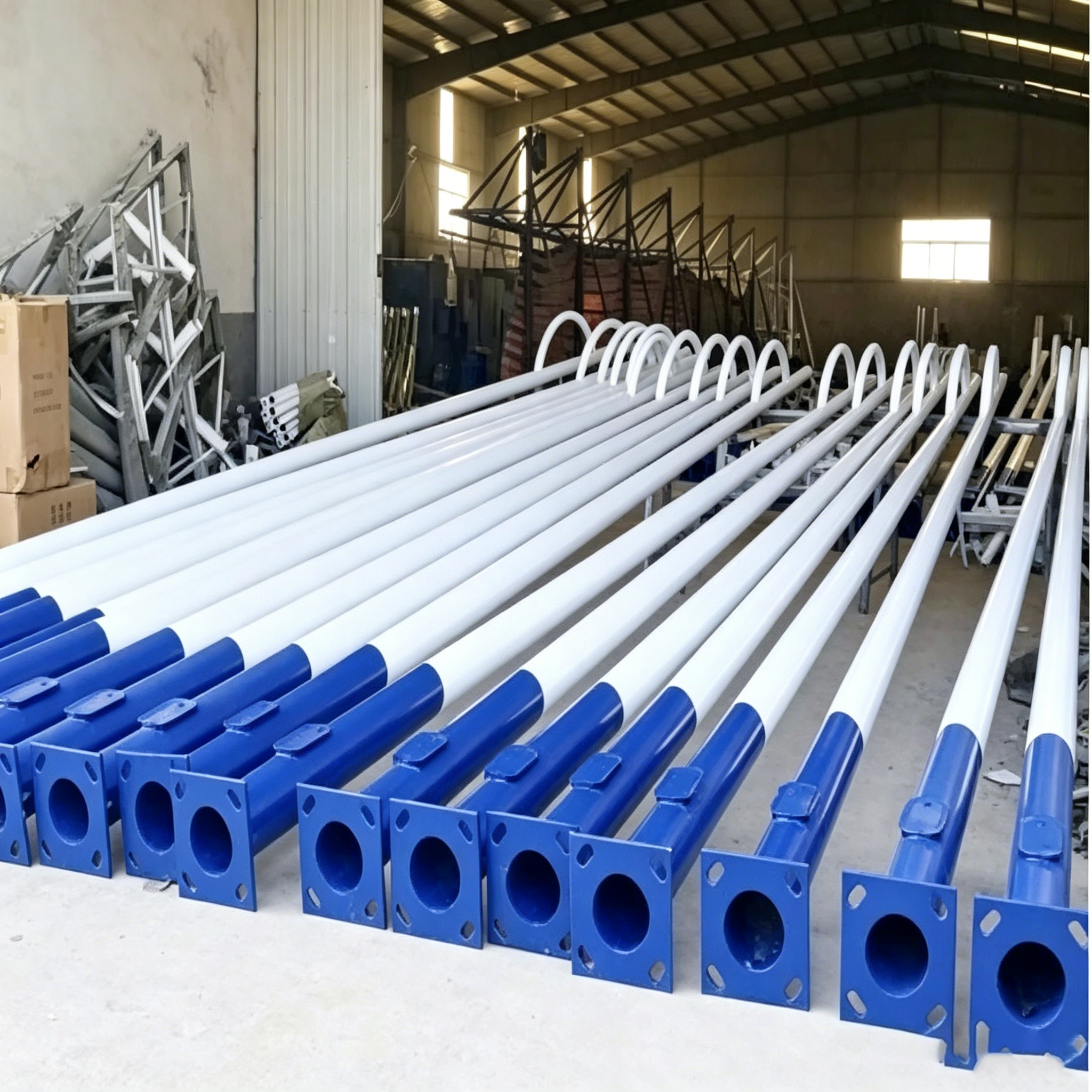

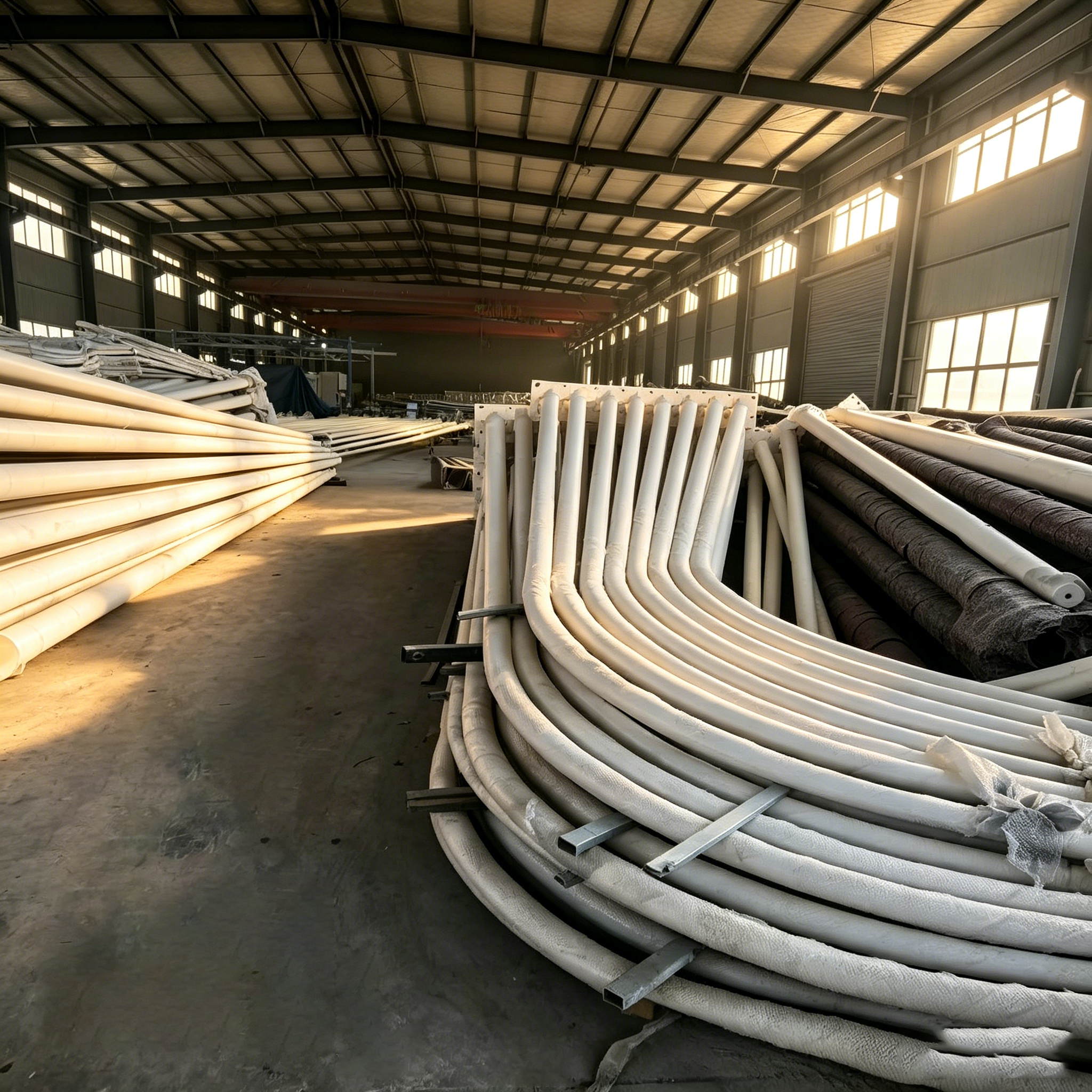

Arm Type: Single arm, double arm, curved arm, cantilever arm, special customized arm
Arm Length: 0.6m ~ 3m customizable
Welding Method: Automatic submerged arc welding, smooth weld seam
Anti-corrosion Process: Full hot-dip galvanization (inner & outer wall)
Zinc Layer Thickness: ≥86μm
Surface Treatment: Outdoor electrostatic powder coating
Plastic Coating Thickness: ≥100μm, anti-UV, anti-fade
Wind Resistance Capacity: ≥36.9m/s
Earthquake Resistance Level: Grade 10

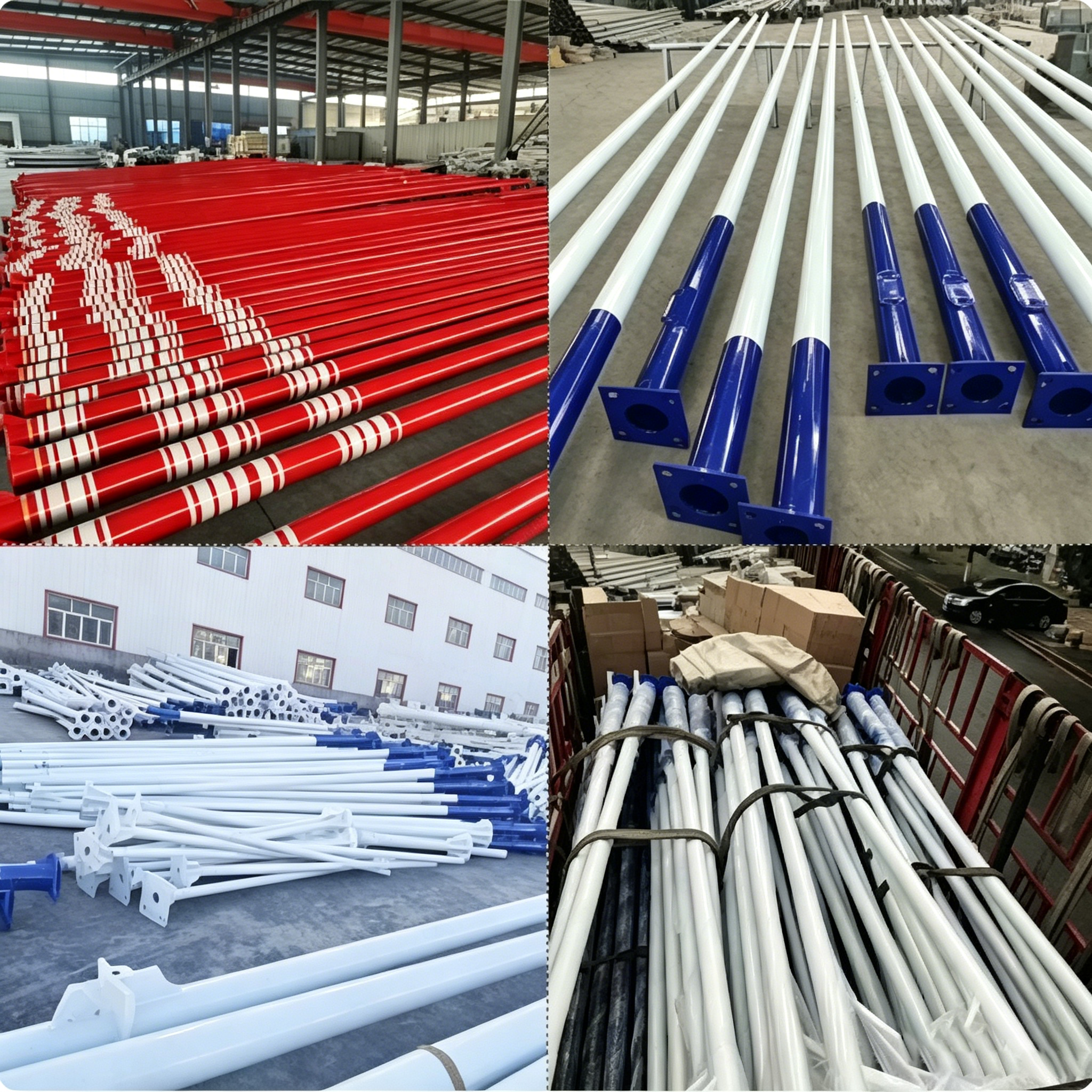

Surface Color: Black, white, gray, bronze, red, custom RAL color

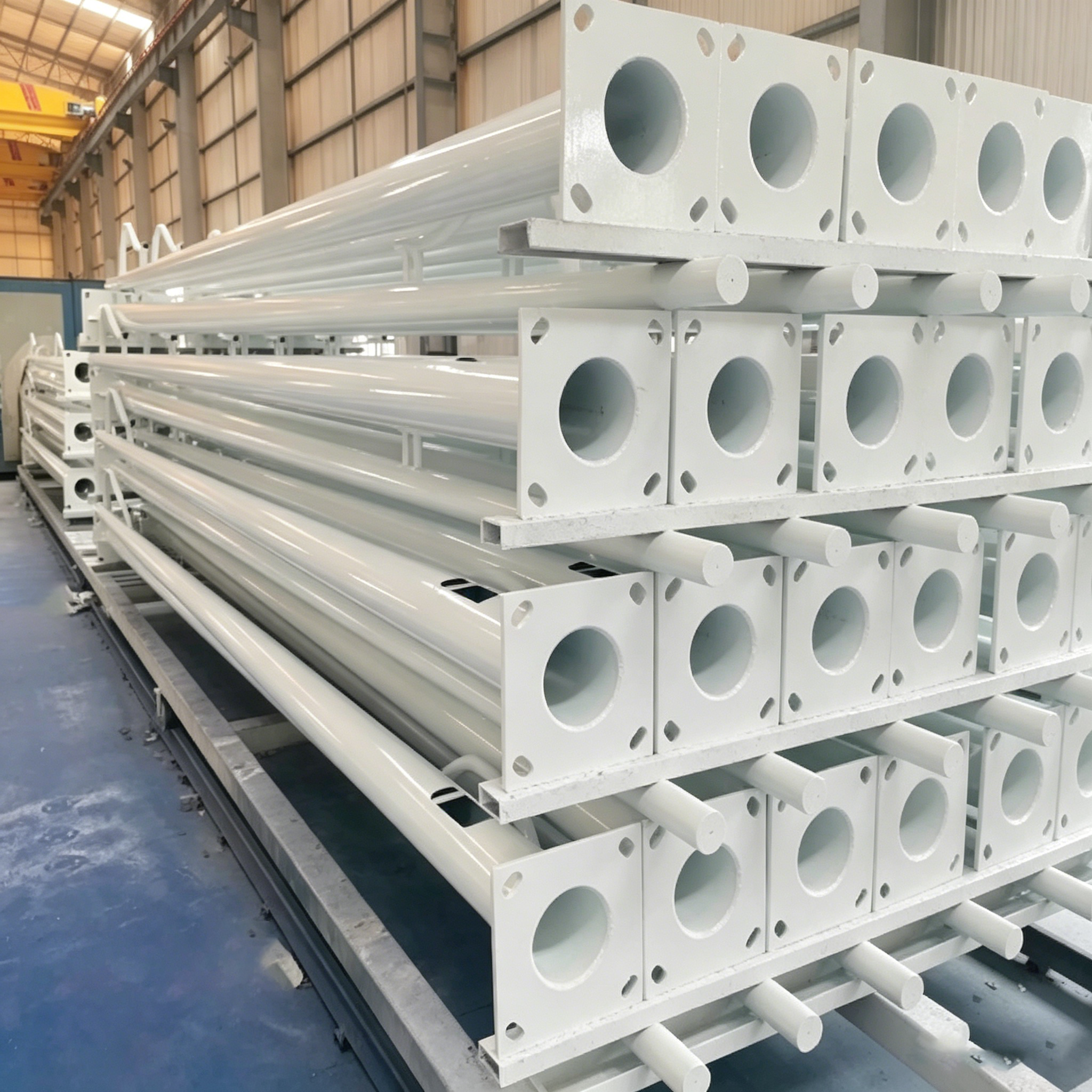

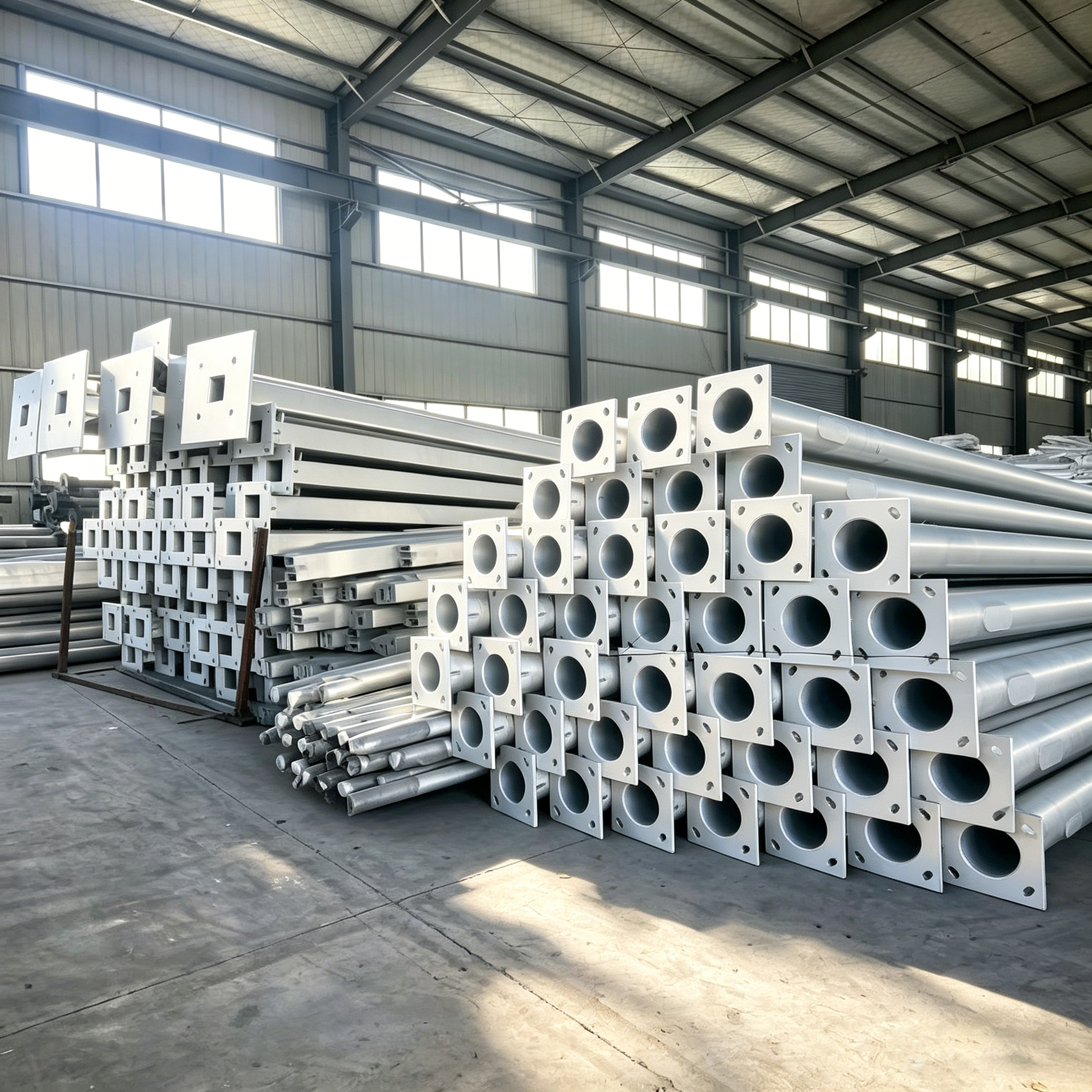

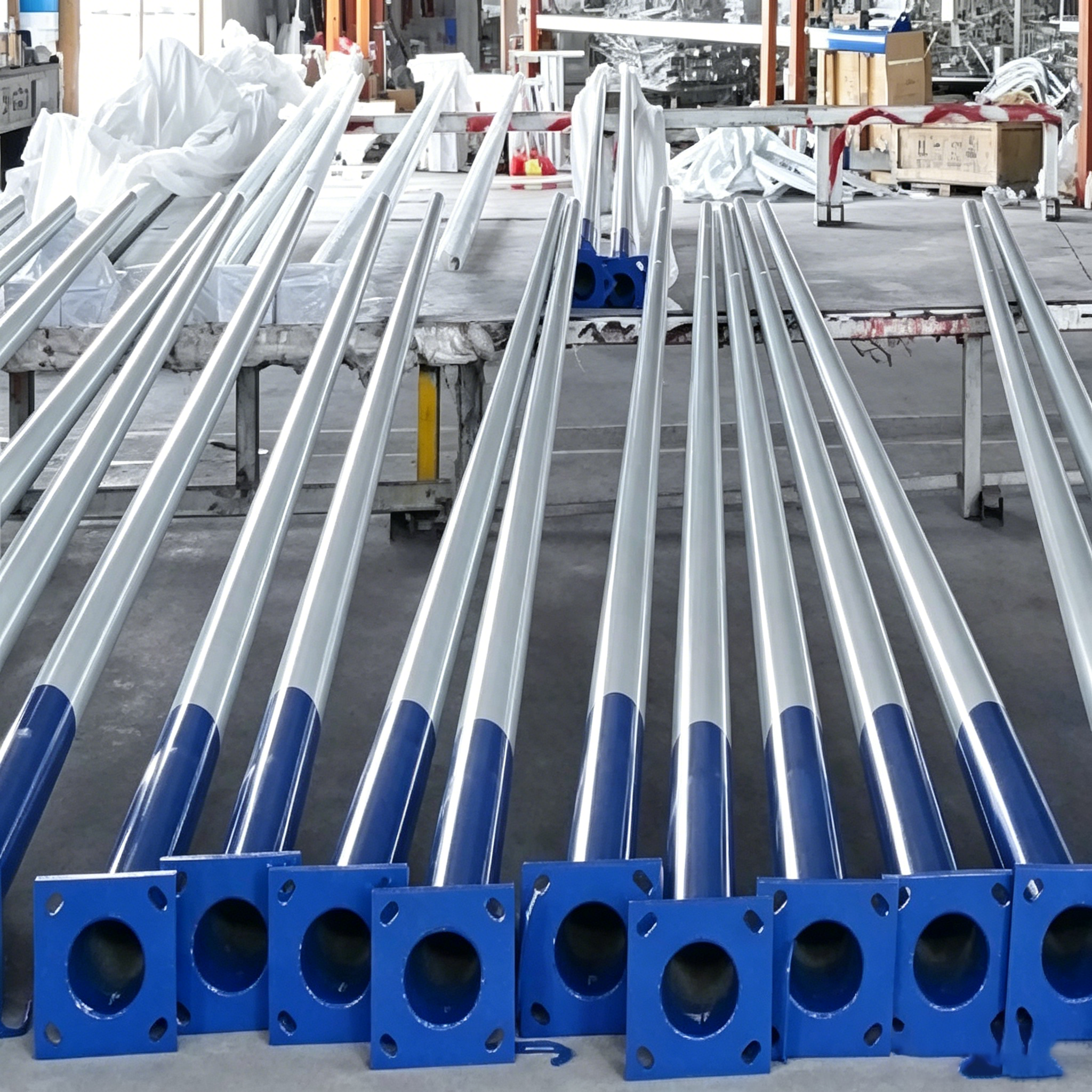

Bottom Flange: Integrated casting flange, anti-slip fixing hole
Installation Method: Foundation concrete pouring fixed
Matching Light Source: Split solar street light / integrated solar street light / municipal LED street light head

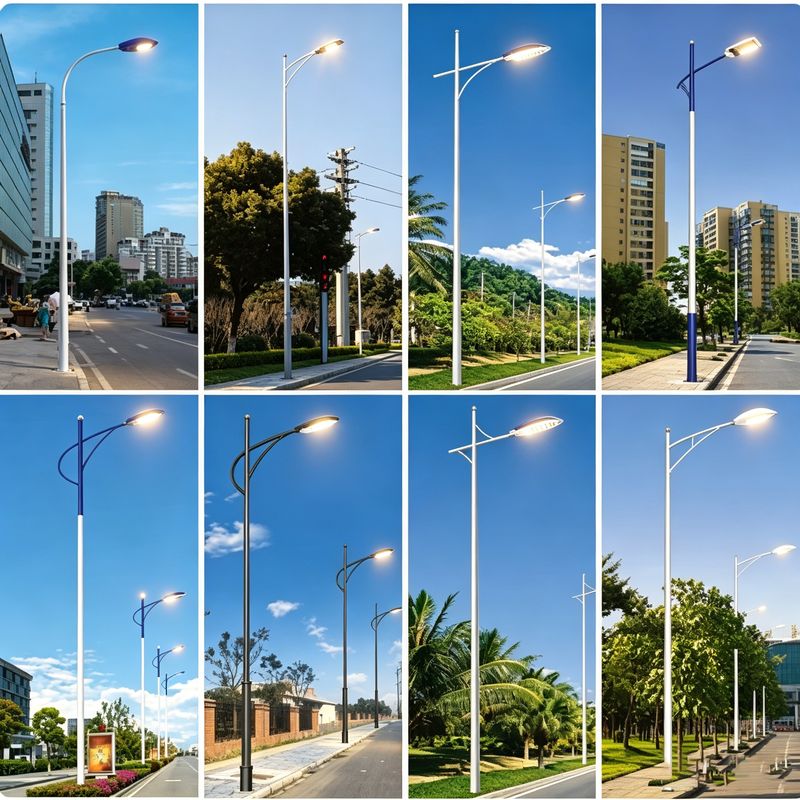

A pplicable Scene: Urban road, rural road, community road, park path, industrial park road| Quantity: | |
|---|---|
xiangrui
Pricing
1. Select a lamp pole style / model number.
2. Provide specifications (pole height, wall thickness, arm length, surface color, load lamp power and other requirements).
3. Receive a customized quotation.
If you are unsure of specific requirements, contact us and share your application environment (e.g., installation location: roads / parks / squares, road width, local wind speed, sunshine hours, matching lamp wattage) for a tailored pole solution.
Customization Services
We provide lamp pole customization according to your specific requirements or construction drawings, ensuring an optimal balance of structural stability, appearance aesthetics and corrosion resistance performance.

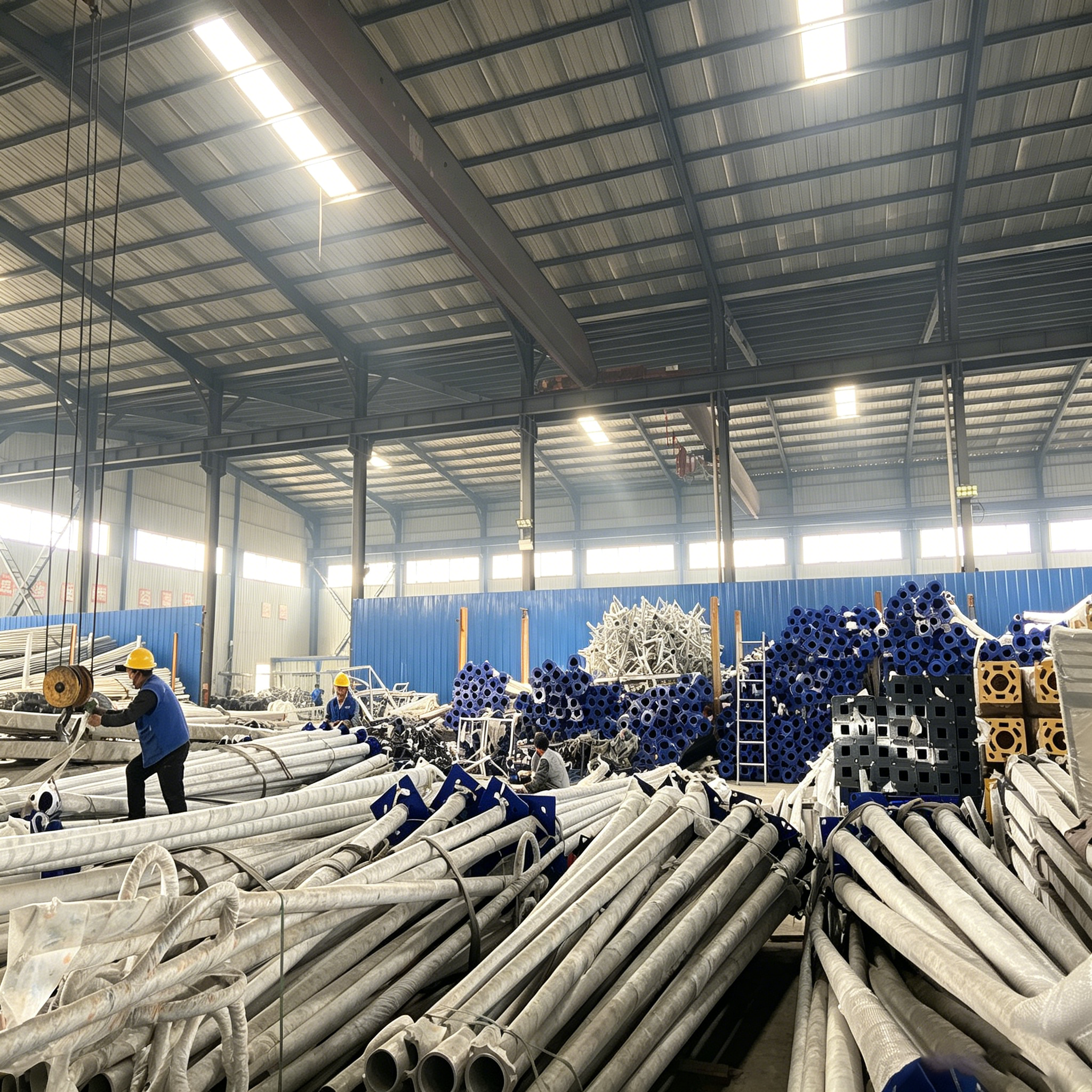

Source Manufacturer
 |   | |
 |  |  |
