XR-DT-LED-101-0104(LED Luminaires)

We could offer the customization according to your demands or design paper.

Origin: XiangRui-Prosper, China
Housing Material: Die-cast aluminum alloy housing
Surface Treatment: Outdoor matte black / gray electrostatic powder coating, anti-UV & anti-rust, long outdoor service life
Heat Dissipation Structure: Detachable multi-fin ribbed heat sink, modular independent heat dissipation, fast heat conduction to reduce light decay
Lens Material: High transmittance PC optical lens, anti-glare, optional road / stadium asymmetric light distribution curve
LED Chip Brand: SMD3030 / SMD5050 high brightness LED chips
Power Options: 50W,100W,200W,250W,300W,400W,500W,600W,750W,800W,1000W,1500W,2000W
Luminous Efficiency: 130–200 Lm/W
Color Temperature: 3000K-6500K (warm white / natural white / cool white)
Light Angle: 60°/90°/120° wide beam, stadium special asymmetric light distribution available
Input Voltage: AC85–265V wide municipal voltage; optional DC power supply
Waterproof Grade: IP66 full waterproof & dustproof, rain/snow resistant
Working Temperature: -40℃ ~ +55℃
LED Service Lifespan: ≥50,000 hours
Mounting Bracket: 180° adjustable heavy-duty U-shaped mounting bracket, support wall/pole/ground installation; anti-glare visor optional for high-power models
Customizable Items: Single module power, total wattage, CCT, housing color, surge protection, dimmable driver, light lens angle, visor shield, cable length
Application Scenarios: Stadium, sports field, highway, large parking lot, factory workshop, mining yard, construction site, square, port dock, billboard high-lift lighting
Availability:
Quantity:
line sharing button
facebook sharing button
linkedin sharing button
sharethis sharing button
  • xiangrui

Pricing Process

1. Confirm flood light model, single module power & total wattage.

2. Submit customized requirements: color temperature, dimming function, anti-glare visor, installation bracket type, cable length.

3. We offer matched quotation with complete technical datasheet.

If you are unsure of configuration, provide your project information: lighting area, mounting height, road/stadium scene, local weather, brightness standard. We will design a targeted lighting solution for you.

Customization Service

We support full customized modular LED flood lights per your project drawings. Adopt split modular design for easy maintenance, independent high-efficiency heat dissipation, built-in lightning surge protection and professional optical lens. Features low light attenuation, ultra-long service life and greatly reduced later maintenance cost. All power combinations can be freely spliced to meet different high-brightness engineering lighting demands.

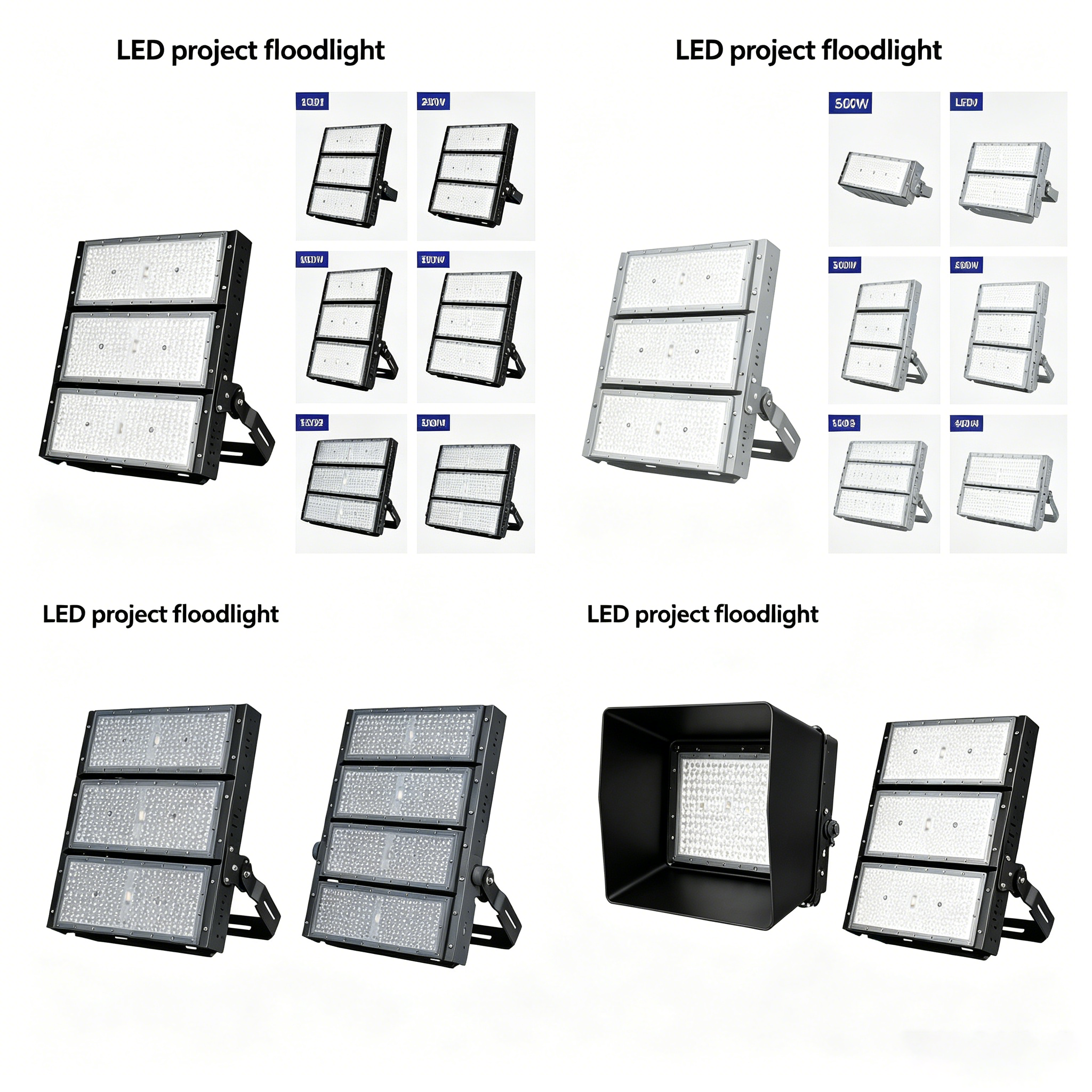

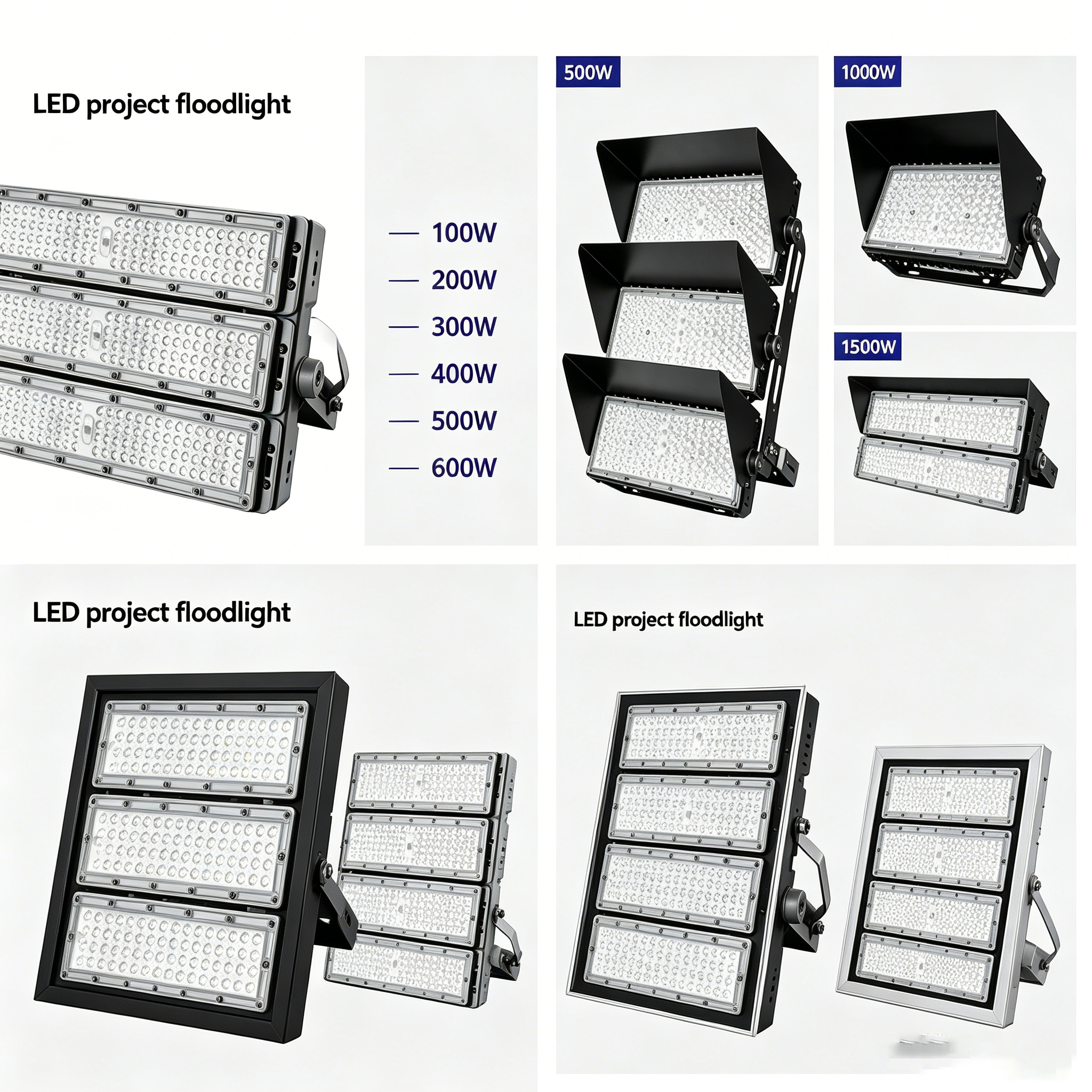

详情页1 详情页2详情页3
详情页6 详情页5
详情页4
