We could offer the customization according to your demands or design paper.
Origin: XiangRui-Prosper, China
Light Housing Material: High-quality die-cast aluminum alloy
Protection Rating: IP66 or higher
LED Power Range: 10W–120W (Customizable; main lighting lamp + decorative ambient lamp optional)
System Voltage: 12V / 24V DC (Pure solar power supply, no AC power needed)
LED Chips: Bridgelux SMD3030 / Osram SMD5050 high-efficiency LED chips
LED Driver: MeanWell / self-developed constant current driver
Luminous Efficacy: 120–180 Lm/W
Color Temperature: 3000K–6500K (Warm White / Natural White / Cool White optional)
Operating Temperature: -40°C ~ +60°C
LED Service Lifespan: 50,000+ hours
Solar Panel: Monocrystalline silicon solar panel, single/dual panel optional, conversion efficiency 18%~22%, panel power customizable
Battery Type: Lithium Iron Phosphate (LiFePO4) / lead-acid battery optional
LiFePO4 Battery Cycle Life: 2000+ charge & discharge cycles
Full Charging Time: 6–8 hours under strong direct sunlight
Intelligent Control Mode: Light sensor + timing control; PIR human body motion sensor optional
Light Pole Parameters
Pole Material: High-strength Q235 / Q345 hot rolled steel
Pole Height Range: 3m–10m (Fully customizable)
Pole Wall Thickness: 2.0mm–6.0mm
Welding Method: Automatic submerged arc welding, smooth seamless welding
Anti-Corrosion Treatment: Internal & external hot-dip galvanization, zinc coating thickness ≥86μm
Surface Finish: Outdoor electrostatic powder spraying
Standard Pole Color: Red; all RAL color systems customizable
Wind Resistance Capacity: ≥36.9 m/s (Resist Grade 12 typhoon)
Earthquake Resistance: Level 8
Pole Shape: Tapered pole, octagonal pole, square pole, equal-diameter round pole
Special Optional Feature: Extra decorative ambient light module, realize road lighting + landscape dual-purpose effect
| Quantity: | |
|---|---|
xiangrui
Pricing Process
1. Confirm solar garden light style and model.
2. Submit detailed specifications: pole height, lamp wattage, battery type, with/without decorative light & PIR sensor, customized pole color.
3. Obtain official customized quotation with full technical data sheet.
If you are unsure of specific configuration requirements, contact us and provide your application environment (villa courtyard / community path / park square / village roadside), road width, local annual sunshine duration and lighting brightness standards, we will match a professional solar garden light solution for you.
Customization Services
We support full customized solar garden lights based on your project requirements or design drawings. We balance practical lighting performance, landscape aesthetics and energy-saving efficiency. Equipped with high-efficiency monocrystalline solar panels and long-cycle lithium iron phosphate batteries, the lights feature all-day self-charging, stable intelligent control, strong outdoor weather resistance and ultra-low later maintenance cost.

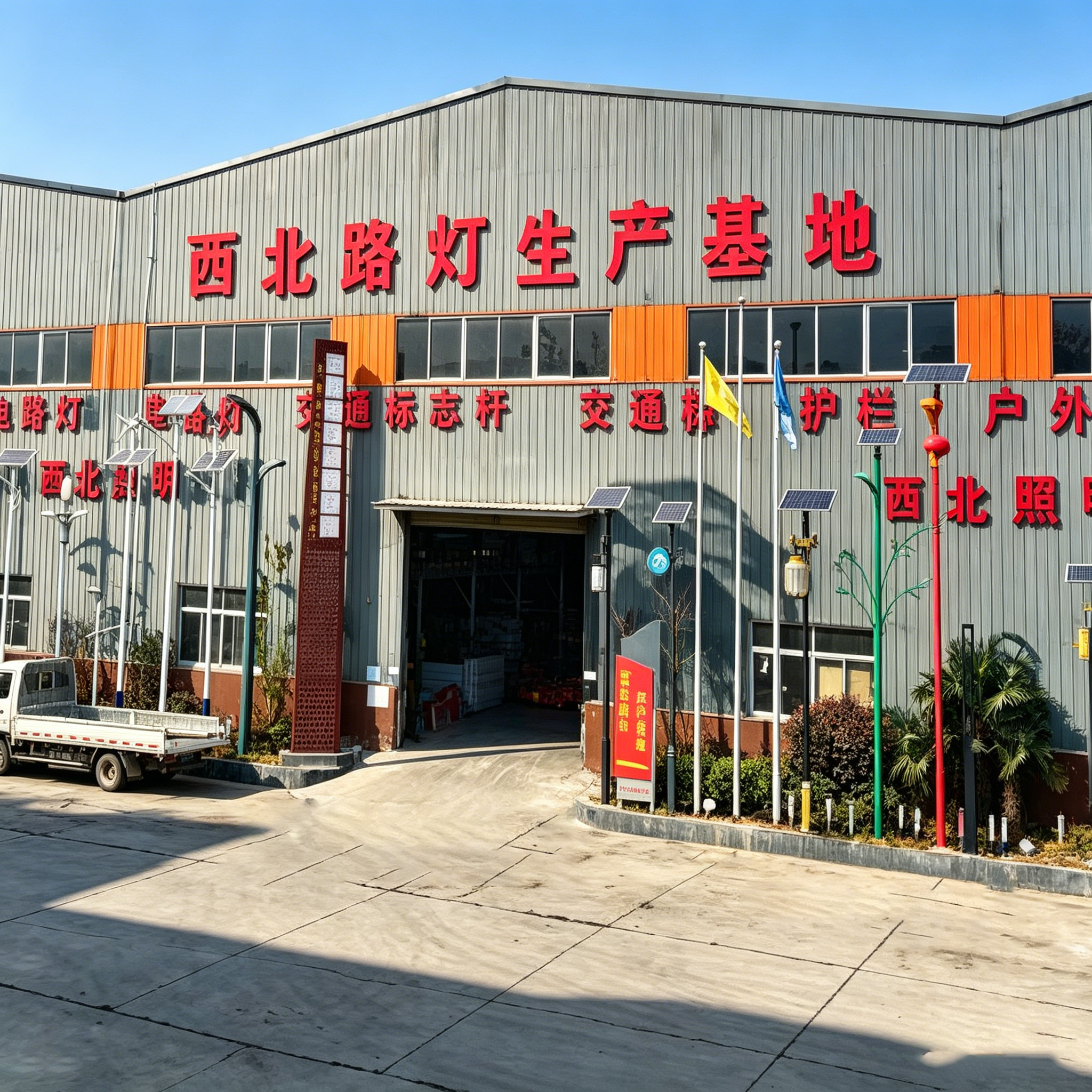

Source Manufacturer
 |
  |
|
 |
 |
 |
